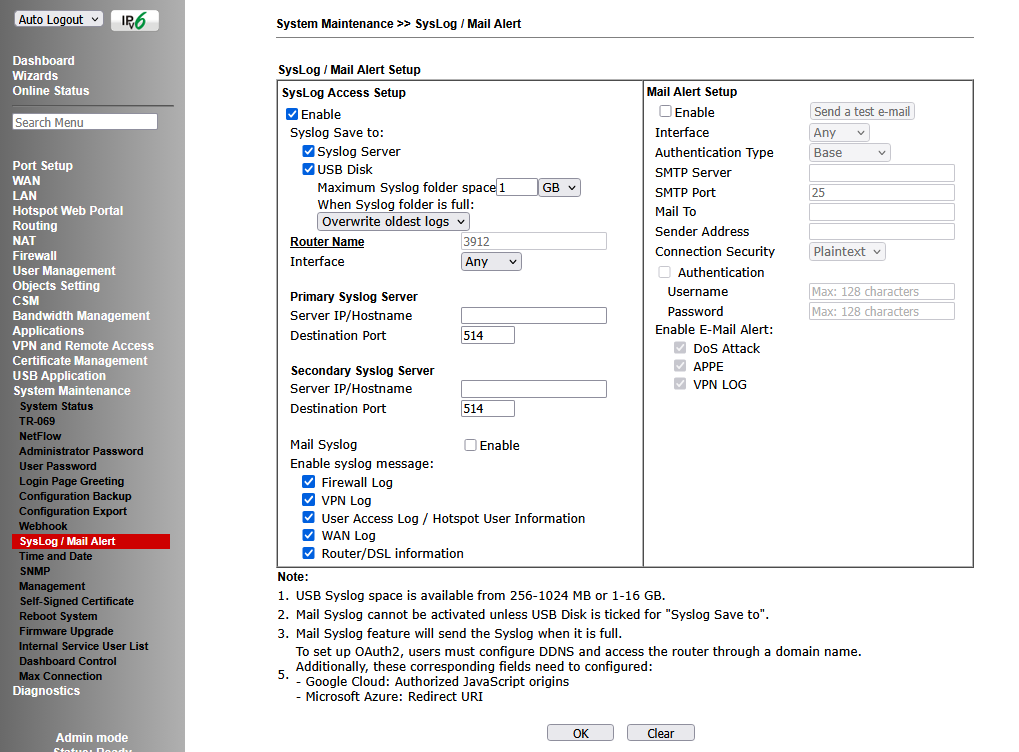

DrayOS4: How do I save Syslog to a USB disk?

Draytek Routers can store logs locally on an attached USB storage device.

---

 How to Enable

1. Insert a USB storage device into the router.
2. Navigate to [System Maintenance] → [Syslog/Mail Alert] → [Syslog].
3. Enable the option to Syslog save to USB disk.
4. The setting will only save if the router detects the USB device.
5. Select the desired Log type

6. Clock OK to save



---

DrayOS5

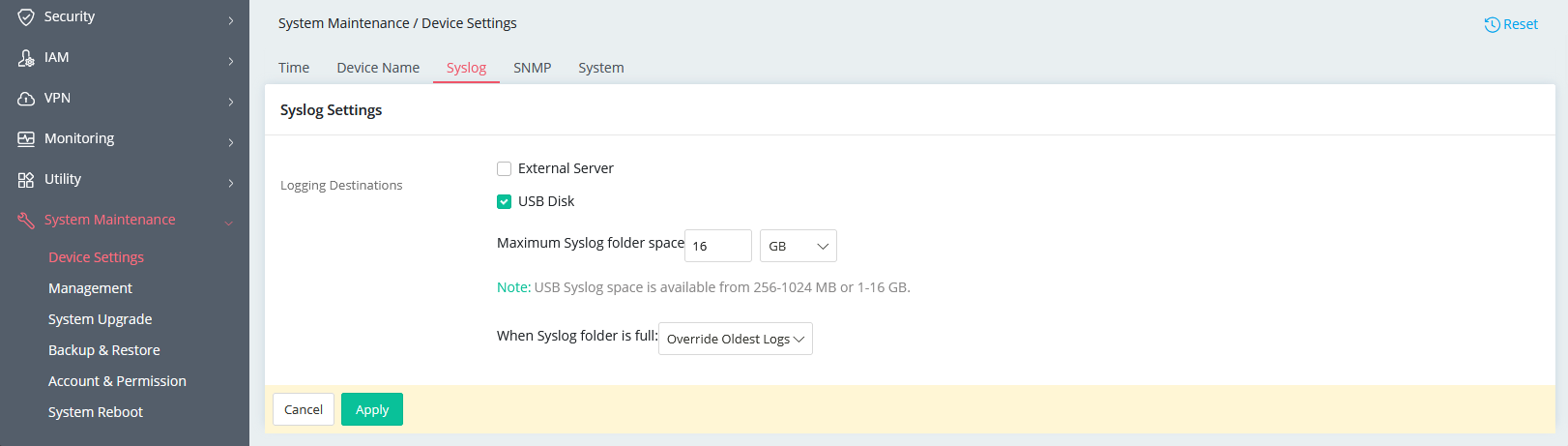

How to Save routers logs on a USB drive

1. Insert a USB storage device into the router.
2. Navigate to [System Maintenance] → [Device management] → [Syslog].
3. Loggin destinations to select USB Disk.
4. Set the Minimum Syslog Folder Space
5. Select Override Oldest Logs

6. Click Apply to save.



Viewing and Collecting the logs saved on a USB.

DrayOS5:  Configure a Vigor Router as an SMB File Server and Collect the saved Logs on a USB Drive
